Products
Product Description |
|---|

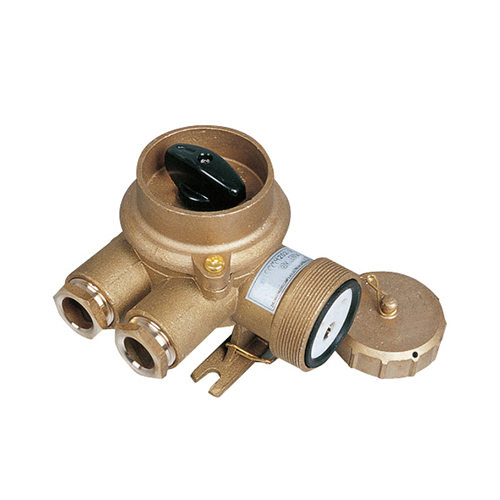

Pin Configuration: 3PIN (2P + E) Rated Voltage: 250V AC Rated Current: 10A / 16A Protection Class: IP56 (dust-tight, water-resistant) Cable Diameter: Φ14-Φ16mm Applicable Standard: DIN 89263 Material: Brass (copper alloy) Approvals: CE, CCS Certified |
Product Description |
|---|

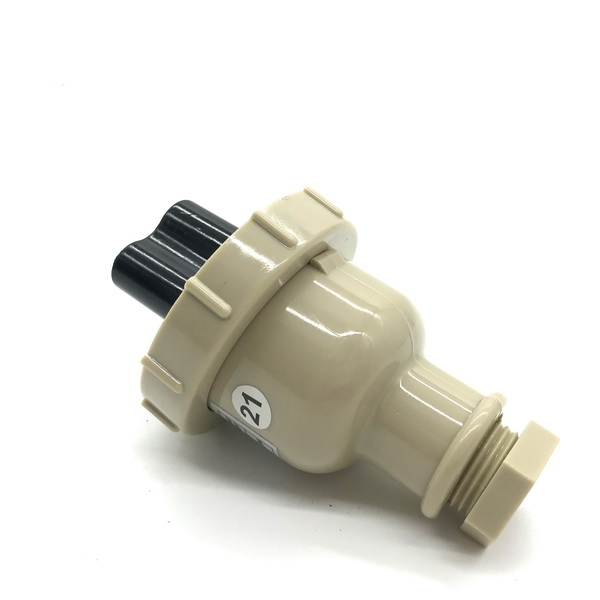

Pin Configuration: 3PIN (2P + E) Rated Voltage: 250V AC Rated Current: 10A Protection Class: IP56 (dust-tight, water-resistant) Cable Diameter: Φ14-Φ16mm Material: Synthetic Resin (Nylon) Weight: Approx. 0.2 KGS |
Product Description |
|---|
Pin Configuration: 3PIN (2P + E) Rated Voltage: 250V AC Rated Current: 10A / 16A Protection Class: IP56 (dust-tight, water-resistant) Cable Diameter: Φ14-Φ16mm Material: Synthetic Resin (Nylon) Weight: Approx. 0.2 KGS |
Product Description |
|---|
Pin Configuration: 3PIN (2P + E) Rated Voltage: 250V AC Rated Current: 16A Protection Class: IP56 (dust-tight, water-resistant) Cable Diameter: Φ14-Φ16mm Material: Synthetic Resin (Nylon) Weight: Approx. 0.22 KGS |
Product Description |
|---|
Pin Configuration: 3PIN (2P + E) Rated Voltage: 250V AC Rated Current: 16A / 20A Protection Class: IP56 (dust-tight, water-resistant) Cable Diameter: Φ10-Φ11mm Material: Synthetic Resin Weight: Approx. 0.22 KGS |
Product Description |
|---|
Pin Configuration: 2P (2-Pole) Rated Voltage: 24V Rated Current: 10A Protection Class: IP56 Cable Diameter: Φ10-Φ11mm Material: Synthetic Resin Standard: JISF8832 / 8833 |
Product Description |
|---|

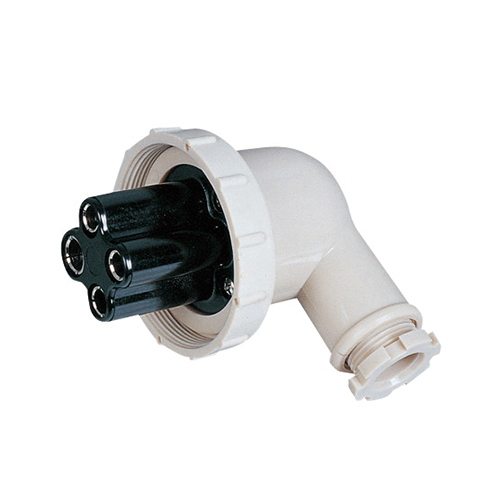

Pin Configuration: 4PIN (3P + E) Rated Voltage: 250V AC Rated Current: 20A Protection Class: IP56 (dust-tight, water-resistant) Cable Diameter: Φ14-Φ16mm Material: Synthetic Resin Standard: JISF8832 |
Product Description |
|---|
Material: Brass Rated Voltage: 24V - 500V (varies by sub-model) Rated Current: 10A / 16A Protection Class: IP56 (dust-tight, water-resistant) Cable Diameter: Φ14-Φ16mm Standard: DIN89267 / DIN89262 Weight: 0.56 - 0.58 KGS (approx.) |
